Dpcm Signal - Pdf Real Time Application Of Dpcm And Adm Systems Semantic Scholar - These methods are different as the pcm represents sample value by code words whereas in dpcm the original and sample values depend on previous samples.

Dpcm Signal - Pdf Real Time Application Of Dpcm And Adm Systems Semantic Scholar - These methods are different as the pcm represents sample value by code words whereas in dpcm the original and sample values depend on previous samples.. Connect clock signal (64 khz) from the transmitter to the receiver using coaxial cable. This technique samples the analog signal and then quantizes the difference between the sampled value and its predicted value, then encodes the signal to form a digital value. That's the explanation it's referred to as as differential pcm. In this example the quantized difference signal is converted into a 2 bit dpcm encoded video signal. • a sample is a value or set of values at a point in time and/or space.

Samples of the message signal are used to vary the duration of the individual pulses. This is due to the fact that any signal does not change fast. That's the explanation it's referred to as as differential pcm. Following is the block diagram of a delta modulator. Dpcm is same as the pcm technique used for remodeling analog signal into digital signal.

This technique samples the analog signal and then quantizes the difference between the sampled value and its predicted value, then encodes the signal to form a digital value. Backward adaptation n conditional replenishment: Signal to quantization noise ratio for pcm for sinusoidal input is sqnr (db) = 6*n + 1.76, where n is bit of uniform quantizer. Since the signal varies over a large range of amplitudes, we generally need a large number of levels (and hence bits). The output 2 bit signal is also connected to predictor circuit 14. The notation of the signals is the same as the previous ones. The block diagram of dpcm receiver consists of a decoder, a predictor, and a summer circuit. Dpcm stands for differential pulse code modulation, is same as pulse code modulation technique used for reworking analog signal into digital signal.

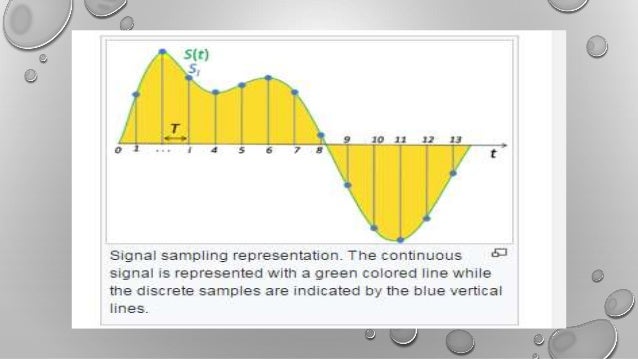

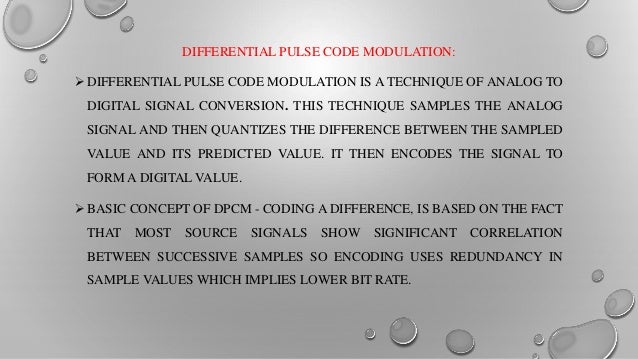

Differential pulse code modulation (dpcm) is a technique of analog to digital signal conversion.

2/7/2018 1 dpcm and delta modulation differential pulse code modulation (dpcm) • in pcm we quantize the analog samples. ■ the simplest form of pulse digital modulation is called pulse code modulation (pcm). The output 2 bit signal is also connected to predictor circuit 14. Samples of the message signal are used to vary the duration of the individual pulses. This technique samples the analog signal and then quantizes the difference between the sampled value and its predicted value, then encodes the signal to form a digital value. Following is the diagram of dpcm receiver. Width may be varied by. Differential pulse code modulation has moderate signal to noise magnitude relation. The code below implements this scheme. The output signal to quantization noise ratio for a dpcm system may be defined in a similar manner as that for a pcm system. A simple special case of dpcm quantizes the difference between the signal's current value and its value at the previous step. As the sampling interval is reduced, the signal correlation will be higher. These methods are different as the pcm represents sample value by code words whereas in dpcm the original and sample values depend on previous samples.

Differential pulse code modulation has moderate signal to noise magnitude relation. Pulse time modulation is also known as pulse width modulation or pulse length modulation. This technique samples the analog signal and then quantizes the difference between the sampled value and its predicted value, then encodes the signal to form a digital value. These methods are different as the pcm represents sample value by code words whereas in dpcm the original and sample values depend on previous samples. Which means, its value from present sample to next sample does not vary by a large amount.

Differential Pulse Code Modulation Dpcm Circuit Working Its Applications from www.elprocus.com

Prediction from previously coded/transmitted samples (know n at transmitter and receiver) n typical signal distortions for intraframe dpcm: Backward adaptation n conditional replenishment: This technique samples the analog signal and then quantizes the difference between the sampled value and its predicted value, then encodes the signal to form a digital value. Differential pulse code modulation (dpcm) is a procedure of converting an analog into a digital signal in which an analog signal is sampled and then the difference between the actual sample value and its predicted value (predicted value is based on previous sample or samples) is quantized and then encoded forming a digital value. Ee368b image and video compression dpcm no. Width may be varied by. Differential pulse code modulation has moderate signal to noise magnitude relation. The dpcm signal will be much lower amplitude if it is a good model the number of quantization levels l is ﬁxed adpcm adaptively adjusts the channel gain, so that the quantization levels best represent the signal.

Differential pulse code modulation (dpcm) is a technique of analog to digital signal conversion.

This technique samples the analog signal and then quantizes the difference between the sampled value and its predicted value, then encodes the signal to form a digital value. The dpcm signal will be much lower amplitude if it is a good model the number of quantization levels l is ﬁxed adpcm adaptively adjusts the channel gain, so that the quantization levels best represent the signal. After introducing a delay element. Which means, its value from present sample to next sample does not vary by a large amount. The notation of the signals is the same as the previous ones. • if we instead quantize the difference between successive samples, we will. Following is the block diagram of a delta modulator. The short form of delta pulse code modulation is dpcm. Differential pulse codemodulation (dpcm) is a procedure of converting an analog into a digital signal in which an analog signal is sampled and then the difference between the actual sample value and its predicted value (predicted value is based on previous sample or samples) is quantized and then encoded forming a digital value. Connect transmitter clock to the timing circuit. This technique samples the analog signal and then quantizes the difference between the sampled value and its predicted value, then encodes the signal to form a digital value. Samples of the message signal are used to vary the duration of the individual pulses. That's the explanation it's referred to as as differential pcm.

A simple special case of dpcm quantizes the difference between the signal's current value and its value at the previous step. The output signal to quantization noise ratio for a dpcm system may be defined in a similar manner as that for a pcm system. In this example the quantized difference signal is converted into a 2 bit dpcm encoded video signal. ■ the simplest form of pulse digital modulation is called pulse code modulation (pcm). After introducing a delay element.

Implementing Differential Pulse Code Modulation Communications Blockset from matrix.etseq.urv.es

Samples of the message signal are used to vary the duration of the individual pulses. Dpcm differs from pcm as a result of it quantizes the distinction of the particular sample and expected price. Pcm and dpcm are the procedures used for transforming analog signal into digital. The output signal to quantization noise ratio for a dpcm system may be defined in a similar manner as that for a pcm system. Dpcm has moderate signal to noise ratio. Differential pulse code modulation (dpcm) is a procedure of converting an analog into a digital signal in which an analog signal is sampled and then the difference between the actual sample value and its predicted value (predicted value is based on previous sample or samples) is quantized and then encoded forming a digital value. Differential pulse code modulation it may be observed that the samples of a signal are highly correlated with each other. Pulse time modulation is also known as pulse width modulation or pulse length modulation.

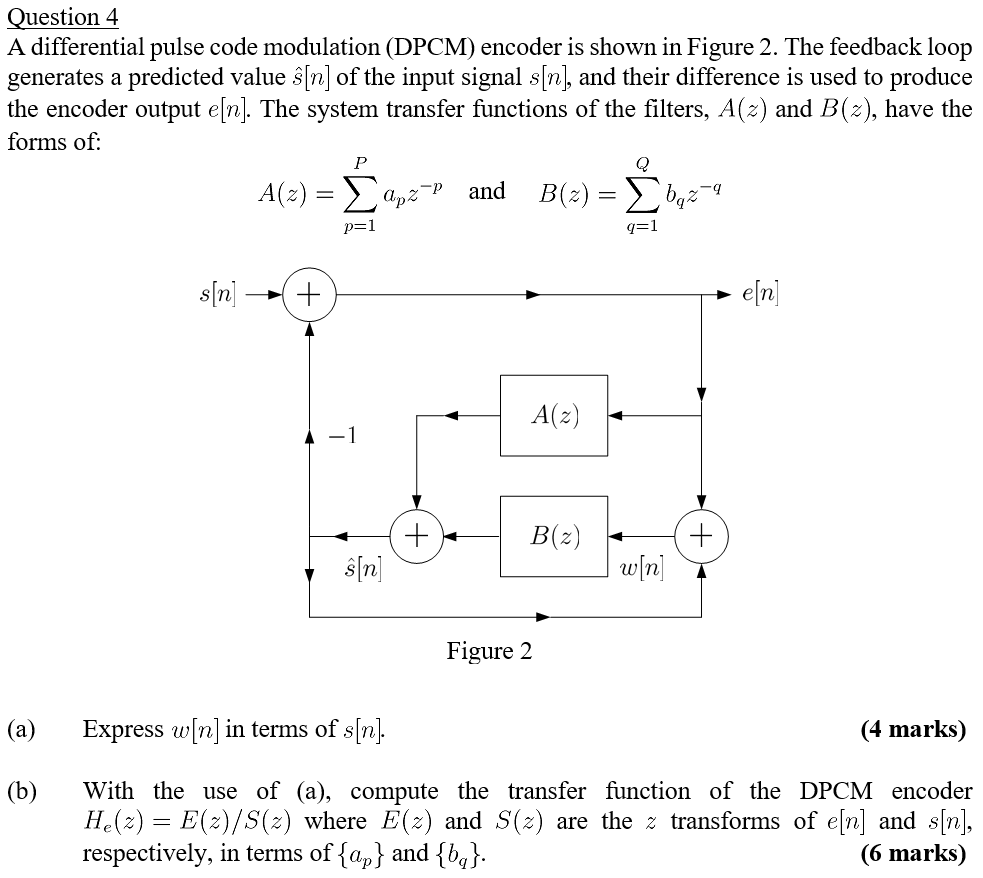

Following is the diagram of dpcm receiver.

The output 2 bit signal is also connected to predictor circuit 14. Following is the block diagram of a delta modulator. Ee368b image and video compression dpcm no. Dpcm has moderate signal to noise ratio. The block diagram of dpcm receiver consists of a decoder, a predictor, and a summer circuit. These methods are different as the pcm represents sample value by code words whereas in dpcm the original and sample values depend on previous samples. Width may be varied by. Connect clock signal (64 khz) from the transmitter to the receiver using coaxial cable. That's the explanation it's referred to as as differential pcm. The dpcm signal will be much lower amplitude if it is a good model the number of quantization levels l is ﬁxed adpcm adaptively adjusts the channel gain, so that the quantization levels best represent the signal. Since the signal varies over a large range of amplitudes, we generally need a large number of levels (and hence bits). Samples of the message signal are used to vary the duration of the individual pulses. Prediction from previously coded/transmitted samples (know n at transmitter and receiver) n typical signal distortions for intraframe dpcm:
